In power systems, both single-phase and three-phase transformers are common devices. They play a crucial role in power transmission, distribution, and various electrical equipment. This article will detail the differences between single-phase and three-phase transformers, including their structure, working principle, application scope, advantages, and disadvantages.
1. Structure and working principle

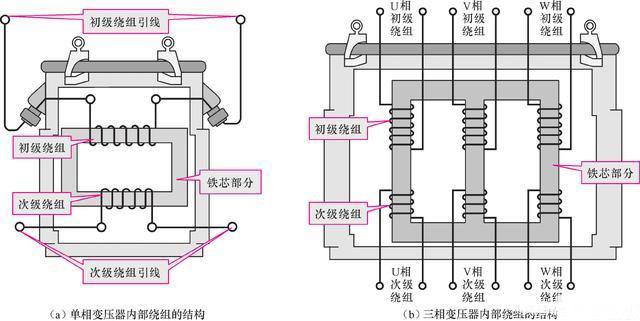

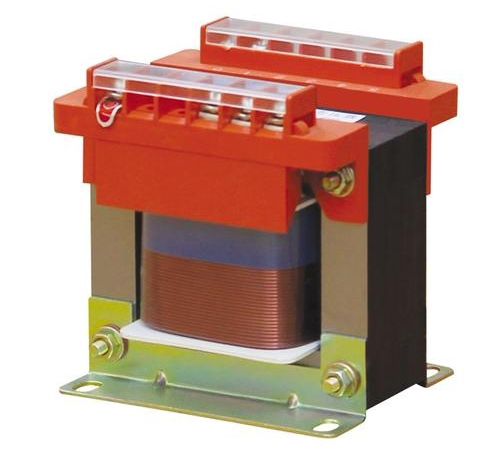

Single-phase transformer: A single-phase transformer is one of the most common types of transformers. It consists of a primary winding and a secondary winding. The primary winding is typically connected to the power supply system and is responsible for receiving the input current. The secondary winding provides the output voltage. Single-phase transformers operate on the principle of electromagnetic induction. When the alternating current in the primary winding changes, an alternating magnetic field is generated. This alternating magnetic field passes through the secondary winding, inducing the output voltage. Three-phase transformer: A three-phase transformer consists of three primary windings and three secondary windings, each 120 degrees apart. Both the primary and secondary windings are connected to a three-phase power supply system. The operating principle of a three-phase transformer is similar to that of a single-phase transformer, but because it has three windings, it can handle greater power and current.
2.Scope of Application
Single-phase transformers: Single-phase transformers are widely used in low-power applications in households, commercial spaces, and industry. For example, transformers used in homes convert high-voltage grid power to low-voltage power suitable for household appliances and lighting equipment. They are also used in electronic equipment, power supplies, etc. Three-phase transformers: Three-phase transformers are primarily used in industrial and power systems. Because they can handle larger power and current volumes, they are commonly used in electrical equipment motors, substations, power plants, etc. Three-phase transformers play a crucial role in power transmission and distribution, as well as industrial production.
3.Comparison of advantages and disadvantage
Single-phase transformer advantages: Simple structure, lower manufacturing cost. Suitable for small residential and commercial applications. Relatively easy to install and maintain.
Disadvantages: Lower power limit, only suitable for low-power equipment. Larger transformer size, taking up more space.
Output voltage is less stable and easily affected by grid fluctuations.
Three-phase transformer advantages: Capable of handling high power and current, suitable for industrial and power systems. High output voltage stability, meeting the needs of demanding equipment. Provides a more reliable power supply.
Disadvantages: Complex structure, higher manufacturing cost. Relatively complex installation and maintenance. May be too large and expensive for small residential and commercial applications.
Single-phase and three-phase transformers differ significantly in structure, operating principle, application range, and advantages and disadvantages. Single-phase transformers are suitable for low-power applications, such as residential and commercial applications, while three-phase transformers are suitable for high-power applications such as industrial and power systems. Single-phase transformers have the advantages of simple structure and low manufacturing cost, but have lower power limit and less stable output voltage. Three-phase transformers can handle high power and current, and have high output voltage stability, but have a complex structure and high manufacturing cost.
When selecting a transformer, the choice between a single-phase and a three-phase transformer depends on actual needs. For residential or commercial applications where only low-power devices require power and cost and space constraints are low, a single-phase transformer is a suitable choice. However, if handling high-power equipment, ensuring voltage stability, and providing reliable power are required, a three-phase transformer is more appropriate.
It is important to note that regardless of whether it’s a single-phase or three-phase transformer, proper operating procedures and safety measures must be followed during installation and maintenance. This ensures the transformer’s normal operation, extends its lifespan, and guarantees the safe and stable operation of the power supply system.
